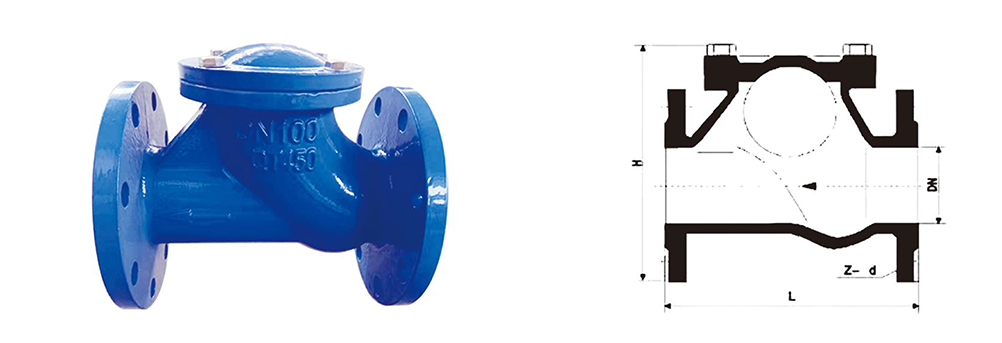

HQ41X BALL CHECK VALVE

HQ41X BALL CHECK VALVE

Size : Customized to any size
Model :Made to order
HQ41X-10/16, H044X--10/16 spherical check valve and HQ45X multi-spherical check valve with rubber coated rolingball as valve disc. Under the action of the medium, the valve can be o......
DESCRIPTION


Product profile

HQ41X-10/16, H044X--10/16 spherical check valve and HQ45X multi-spherical check valve with rubber coated rolingball as valve disc. Under the action of the medium, the valve can be opened or closed by roling up and down on the integraslide in the valve body. Silent closure, no water hammer, good sealing performance. The valve body adopts the fullflow channelthe flow is large, the resistance is small, the head loss is 50% less than the swing type.

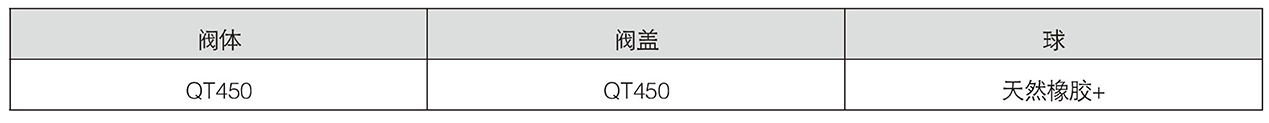

Main parts material

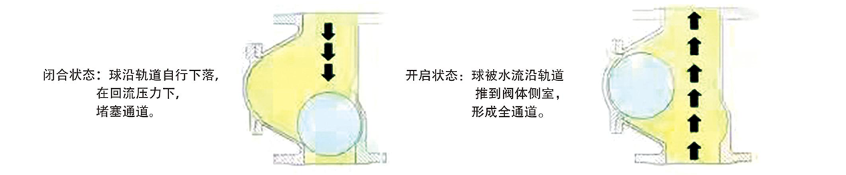

Working principle

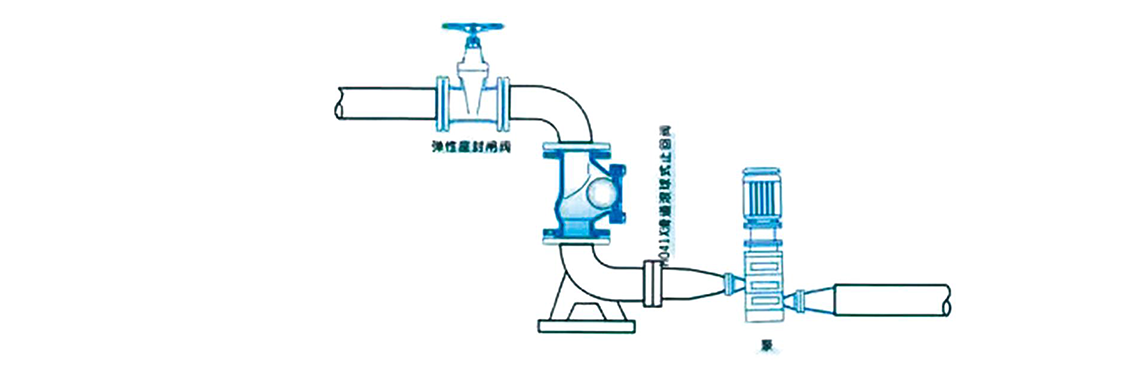

Typical Installation Diagram


Each filter is packed in protective cartons with foam cushioning for safe transport.
